Preparing for the Holiday Season: The Essential Caravan Parts and Accessories
The holiday season is the perfect time to escape the hustle and bustle of everyday life and enjoy a peaceful break with family or friends. For those who prefer to travel in their caravan or motorhome, it's essential to make sure that all the parts and accessories are in top condition, or to prepare for the worst!
A well-equipped caravan is not only important for a comfortable and enjoyable trip but also for safety reasons. In this blog post, we will discuss the most essential caravan parts and accessories people should consider before going on a holiday.
Battery
The battery is another essential part of your caravan. It powers your lights, appliances, and other electronic devices. Make sure to check the battery's condition before your trip, including the battery charge level and its capacity to hold a charge.
Before setting off on your trip, it's essential to check the condition of the battery. Firstly, check the battery charge level, and if it's low, recharge it fully before you leave. You should also ensure that the battery has the capacity to hold a charge, as a faulty battery may not be able to retain the charge for long. If you find that your battery is not holding a charge as it should, it may be time to replace it with a new one.
Have a look at our selection of caravan batteries below:
Replacement 3.7V battery for the Sargent AS350 Alarm system. This is a 10A Lithium Ion rechargeable battery.
Sargent stinger 310 battery replacement.
Sargent Recommend the replacement of this battery every 3 years.
Always check the condition of your Sargent battery especially those caravans and motorhomes which are in storage through the winter months.

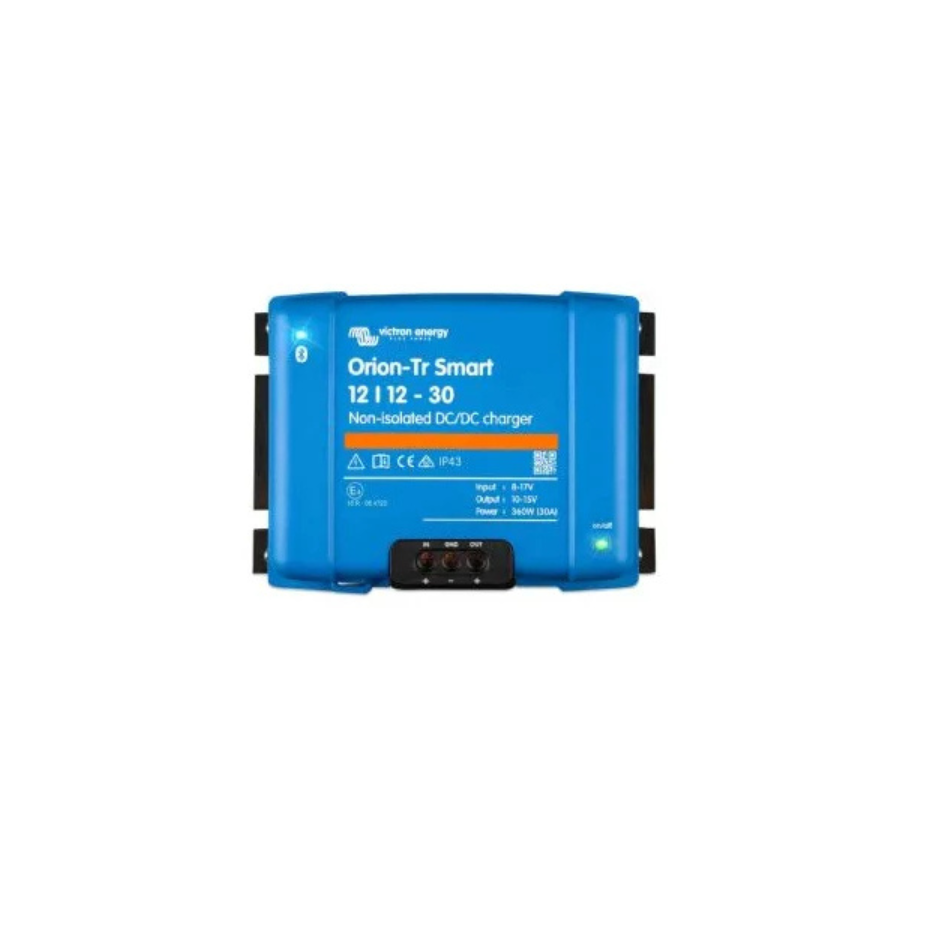

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.
For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.
The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.
Suitable for high temperatures up to 55°C with a full rated output up to 40°C
Dimensions (HxWxD): 130 x 186 x 80mm
Weight: 1.9Kg
Sargent 150watt, 10amp Solar Regulator with Maximum Power Point Tracking
This is NOT a replacement for the EC500 solar regulator
This can be used a replacement for the 15778 (white solar regulator)
This 10amp solar regulator uses Maximum Power Point Tracking (MPPT) technology to extract the maximum possible energy from the connected solar panels. In this way it can typically harvest 25% more energy than standard solar regulators. The regulators are compact and simple to fit via their plug & play connectors, as used on the Sargent solar panel ranges.
Dimensions (LxWxH)40 x 75 x 22mm
Weight115g
Cable length250mm
POWERPART Dual Stage Charger.
Transformer & Battery Charger Dual Stage 20 Amp Output.
The complete 12v Supply Unit, a fully Automatic Supply Direct to Caravan appliance and Electronically Controlled Battery Charging.
Size: (W) 250mm x (D) 125mm x (H) 67mm.Output 1: 13.8 DC Volts - 20 Amp DC
Power. Output 2: 6 Amp 3 Stage Battery Charging Boost / Equalisation / Float. Fitted as Standard to major Manufacturers: Bailey Approach 1, Bailey Approach II, Bailey Autograph, Bailey Advance, Coachman Pastiche (up to 2015), Coachman VIP(up to 2015), Coachman Laser (up to 2015), Elddis Encore (Range), Equi-Trek Evolution.
There is now an extra white lead that is only used on 2015 Elddis and Bailey motorhomes - if you are replacing a transformer unit this lead can just be tucked out of the way and does not need to be connected to anything.
BCA Part Number: PS301-8A-BC Also replaces older PS306-6A-BC versions
PowerPart 20 Amp Dual Stage Charger.
20 Amp Power Supply to convert 230V mains into 12V.
Efficiently Supplies and charges the battery as well as supplying the 12Volt electrical system.
BC18003
1 Set of Quick Release Battery Clamps.
Suitable for all round postbatteries sizes.
Red Cover for Positive Post and Blue cover for Negative Post.
Cable is fixed by a set screw.
Replacement 4.8V battery for Sargent Stinger 300 and 310 Alarm systems.
This is a 9Ah NiMH rechargeable battery.
Sargent stinger 310 battery replacement.
Sargent Recommend the replacement of this battery every 3 years.
Always check the condition of your Sargent battery especially those caravans and motorhomes which are in storage through the winter months.
This Item is for Click & Collect Only
Ideal for Leisure use and very common in Caravans and Motorhomes
Suitable for motormover use
Will fit nearly all caravan battery boxes, if your battery is located in a floor box or under a front seat, you may need the low height version which we also stock
This Item is for Click & Collect Only
This battery is ideal for light Leisure use and very common in Caravans. If you have a Motormover fitted we would recommend choosing a more powerful battery.
This stand alone Sargent PF200 charger can be fitted alongside your power supply units for those who require more power.
There are no switches on this unit either which mean it does not need to be on display within a van.
The PF200 is a 2 stage battery charger/power converter providing 13.8V DC and 13.9A (192 Watts).
It is designed to work with lead acid batteries and is also compatible with the latest AGM batteries and many lithium batteries with built in battery management systems with an input voltage of 13.8V, (please refer to the battery manufacturer documentation for compatibility).
The PF200 has built in protection for short circuit, reverse polarity and over temperature.
The 230V AC input lead is supplied with 2 x insulated 6.3mm blade terminals and the DC output lead has stripped and prepared ends.
Please refer to the PF200 user instruction for further information.
Ideal for your caravan, motorhomes and van conversions.
POWERPART 1 x 20 amp Power Unit Transformer.
20 Amp Power supply to Convert 230V mains to supply the 12V Electrical System 13.8 volts d.c output.
230 volt input. Dimensions: (W) 250mm x (D) 125mm x (H) 67mm
BCA’s 20 Amp output Power Unit Transformer is the complete 12 volt supply unit, a fully automatic supply direct to the caravan appliance and electronically controlled battery charging. Designed to operate in all European countries and charge a totally flat battery. To ensure a silent night time operation, the fan switches off at low loads. The fan will start to operate once the load current is in region of 5A – 8A
POWERPART 1 x 10 Amp Power Unit -Transformer.
The complete 12v power supply unit is a fully automatic supply direct to caravan appliances and has a electronically controlled battery charging. Charger Size: (H) 65mm x (W) 165mm x (D) 110mm Fitted in: Adria (All Models)
This PX310 multi-stage battery charger is designed for leisure vehicle applications, providing power for both battery charging and 12 volt appliances. The integrated LCD display shows battery charging status and allows setup for different battery chemistries. A PSU mode allows the charger to be used without a battery fitted and the Silent mode avoids noise during overnight charging.
Supplied with connecting cables.
Note:- If replacing a manufacturer fitted PX300, please order the appropriate conversion harness, as connections on the PX310 are different.
Water System
The water system is another crucial part of your caravan, especially if you plan to go on a more extended trip. Before setting off, make sure to check the water system's condition, including the water pump, hoses, and tanks. Also, make sure that the water is clean and drinkable.
Check the water pump: The water pump is responsible for drawing water from the tanks and sending it to the faucets and appliances in your caravan. Before your trip, make sure the water pump is in good working order and has sufficient water flow.
Inspect hoses: Hoses connect the water pump to the tanks and faucets. Ensure they are not cracked, split, or kinked. Replace any damaged hoses to avoid water leaks.
Check the tanks: Water tanks hold freshwater and grey water. Ensure they are clean, free from debris and dirt, and no water is leaking from them. If you notice any leaks, replace them immediately.
Test the faucets: The faucets and showerheads in your caravan should provide a steady flow of water. Ensure they are not clogged or corroded. If you notice a weak flow, clean the aerator or replace the faucet.
Inspect the water heater: If your caravan has a hot water system, ensure it is working correctly before your trip. Check for leaks or damage and ensure that the heater is properly connected to the gas or electrical system.
Have a look at our water system caravan parts:
A 15 metre 'food quality' hose pipe which comes complete with fittings and a special pressure reducing adaptor which allows caravanners to connect their water system directly to a mains water supply without modification.
Compatible with the Ultraflow filter and Ultraflow compact water systems, simply plugg into the Ultraflow housing.
Truma safety drain valve
2.8 bar is a genuine replacement part for draining down the system on the truma ultrastore water heater from 07/1993 onwards.
Yellow on/off lever with quick fit connectors for 12mm semi-rigid water pipe.
Replacement pressure switch for Flojet pump set at 25psi nominal.
To suit flojet pump.
Flojet pressure switch to fit r3426 series flojet pumps.
Cut out pressure 25psi.
Shurflo Screw on filter 1/2” threaded inlet & wing nut .
Clean, clear economical strainers eliminate unnecessary repairs by keeping debris and other particles out of the pump.
Screws directly on the pump head.
Transparent design shows when it is time to clean the bowl.
Easy disassembly, cleaning and reassembly.
Updating simple caravan and motorhome spare parts helps keep your water system working effectively .
PLS Bagged & Header Carded. TR0801
Suitable for the Ultraflow Pistol Grip Assembly
Pistol Grip water pump O Ring
The Whale Watermaster On Board Fresh Water Pump delivers a smooth, consistent flow and runs dry without damage. ( Non retail packed )
20% lighter than Whale Smartflo
Vertically mounted
Quick Conntect 12mm ports
Rubber feet to absorb vibration
Fully sealed protective motor cover
Hose Connections: For 1/2” flexible hose use WU1282. For 3/8” flexible hose use WU1280
• Inlet/Outlet Size: Whale® Quick Connect 12mm Female Connections
• Semi Rigid Pipework System Connections: For Whale® Quick Connect 12mm no adapter required - use 12mm semi rigid pipework WX7112
The UF0812 is one of the Universal Fresh Water Pressure Pumps offered by Whale Water Systems, delivering 8ltrs/min, the pump requires no external switching and delivers fresh water on demand.
Outlets: 2. Flow rate: 8ltr/min (2 US gal). Max Suction Lift: 3m (10ft).
Max Head Lift 20m (66ft). Cut Out Pressure: 30psi (2bar).
Recomended Fuse: 5amp. Voltage: 12v.
Truma Ultrastore series Cowl Cover White 70122-01
Fitted after 07/2006. This cover has two catches at the top. Size 260mm x 134mm.
Ideal for keeping out insects and leafs from your water system.
Truma Ultraflow filter housing 46010-01
Allows you to easily filter the water supplied from your Aqua roll or Waterline into your vehicle.
Complete with ultraflow active carbon filter and blanking plug.
The ultraflow housing comes with an exterior accessory point which can be connected (via optional connector) to allow the use of the exterior shower set (optional)
Template size 108mm x 163mm
Kits includes : a pump assembly and accessory plug point, a replacement filter house, time indicator and a cover for protection. Fitted by majority of UK Manufacturers including Bailey, Coachman, Lunar and Swift.
White
Truma Housing 46010-03
To convert Crystal MK2 to Ultraflow system whilst enabling the use of the original pump assembly.
Kits consist of ultraflow housing, pistol grip pump connector and filter.
Template size 108mm x 163mm
FILTAPAC 1 x Filter Housing in White FL105W
(Filter not Included)
Replacement Housing for the Carver/Truma Crystal MK2.
Cut Out Size. Height 150mm x Width 95 Overall Dimensions. Height 180mm x Width 130mm x Depth 200mm
The Ultraflow compact housing inlet for use with a submersible pump.
Dimensions 143 x 105mm, bore hole 50mm diameter.
46030-01
Truma 46131-51
Use this housing when you have an onboard pump
It has no terminals for an exterior submersible pump
Truma Carver Water Heater Pressure Relief Valve 101039PK
A relief valve or pressure relief valve (prv) is a type of safety valve used to control or limit the pressure in a system; pressure might otherwise build up and create a process upset.
• This is the new version with fast-drain nozzle. pressure relief valve for carver cascade water heaters.
Truma Ultrastore 850w Water Heating Element 230v/850w 70020-00270
Genuine replacement heating element for the Truma Ultrastore water heater from 2003 - 2011
Please note:- this will not fit in place of the now discontinued 450w element
Replacement Ultrastore Element contains:
Thermostat
O Ring
Genuine Truma Part for Caravan or Motorhome
Must be fitted by qualified technical trained operatives only
Part Number 70020-00270
Genuine Truma Replacement Ultraflow filter shower bridge connector
40060-96700
Allows the use of an external shower. Fits all Truma Ultraflow filter housings with a showeroutlet.
Size: 165mm (L) x 98mm (W) x 30mm (D)
Colour: Blue
Whale pump Strainer for 15mm Push Fit Pipe AK1319
Suitable for a range of Universal Onboard Pumps UF0812, UF0815, UF1212, UF1214, UF1215, UF1225, UF1815 & NOT Suitable for FP0814 Watermaster Onboard Pump
The Whale Replacement Strainer has a 12mm push fitting connector that fits directly to the Smartflo range of fresh water pressure pumps. The Whale strainer has a clear top design, to make inspection and cleaning done with ease. The strainer is equipped with a stainless steel internal gauze designed to prevent foreign materials in the water system, protecting the water pump.
Features
Strainer with 12mm push fit connector
Compatible with Whale Smartflo pumps
Easy to install
Specifications
Approximate dimensions: H 90mm x W 92mm x D 68mm
Product reference: AK1320
Shurflo Trail King Pump12V 30PSI is an automatic triple diaphragm pumps with integral pressure switch to ensure a smooth water flow. Will run dry without damage.
Delivers 7 litres per minute at free flow for only 1 amp and self primes vertically to 2.1m.Pump set at 20 psi(2.1 Bar) cut off pressure.
Suitable for low pressure storage water heaters such as Cascade, Rapide, Truma.
A fully automatic tripe diaphragm positive displacement freshwater pump with integral pressure switch.
Heavy duty die cast alloy lower housing with twin ball bearing drive
Motors have internal circuit breaker for electrical overload protection.
Will run dry without damage
THESE PUMPS ARE NOT RETAIL PACKED SO DO NOT COME WITH HOSE CONNECTORS, THESE CAN BE PURCHASED SEPARATELY
Three chamber diaphragm design, self-priming up to 9 feet suction lift, pump able to run dry without damage. Soft, noise absorbing mounts. Snap in port fittings.
Designed to protect the performance of your Shurflo water pump by keeping debris from blocking the pump valves.
The Ultraflow Replacement Filter 46020-01 is for use with the Truma Ultraflow Filter Housing and older Crystal II filter housing systems.
It consists of an active carbon block that removes unpleasant smells, tastes and colours from your water supply.
Mainly for use with the Ultraflow Filter Housing; however it is also conveniently compatible with the Crystal II Filter Housing System
Put an end to encountering unpleasant smells, tastes and colours in your water supply.
Make the right choice a high quality, longer-lasting filter which is great value for money and designed to be more eco-friendly
High standard of water filtration
Easily changeable
Compatible with Crystal 2 inlet hou
Truma Ultraflow Inlet Hose 46340-51 is a replacement hose and strainer assembly with pistol grip plug that is compatible with Truma Ultraflow Compact Housing.
This replacement connector plugs into the new Ultraflow inlet and is suitable for use on the Ultraflow Housing and Pumps.
Truma pistol connection for Ultraflow pumps features:
Size: 125mm (L) x 72mm (W) x 32mm (D)
Colour: White.
Supplied with 2 O-rings and fixing clamp ring
The water pump with ergonomically shaped pistol grip is plugged into the filter or compact housing.
Tube length 800mm
9 litres per minute at 3m head at 1.5bar
1.2bar
Gas System
The gas system is another critical part of your caravan, especially if you plan to cook or heat your caravan. Before setting off, make sure to check the gas system's condition, including the gas bottles, regulators, and hoses. It's also essential to ensure that the gas appliances are in good working order.
Check the gas bottles: Gas bottles are the source of gas for your caravan's appliances. Ensure that the gas bottles are secure, and the valves are closed tightly. Check for any damage, such as dents or cracks, and replace them if necessary.
Inspect the gas regulator: The gas regulator controls the gas pressure in your caravan's appliances. Ensure it is working correctly and not leaking gas. If you notice any issues, replace the regulator before your trip.
Check the gas hoses: Gas hoses connect the gas bottles to your caravan's appliances. Inspect them for any damage, such as cracking or splitting, and replace them if necessary.
Test the gas appliances: Your caravan may have gas appliances such as a stove, oven, or heater. Before your trip, test these appliances to ensure they are working correctly. Check for any leaks or damage and replace them if necessary.
Install a gas detector: It's essential to have a gas detector installed in your caravan to alert you in case of a gas leak. Test the detector before your trip to ensure it is working correctly.
Have a look at our gas system caravan parts:
Security
Security is another essential factor to consider when preparing for your holiday. Make sure that your caravan has adequate security measures, including locks, alarms, and security cameras. It's also a good idea to invest in a tracking device, so you can quickly locate your caravan in case it gets stolen.
By taking these security measures, you can ensure that your caravan and belongings are protected while on your holiday. It's always better to be safe than sorry, and investing in caravan security can provide you with peace of mind and help prevent any unwanted incidents.
Have a look at our security options for your caravan:
Kidde 10 Year Smoke & Carbon Monoxide Combination Alarm with 9V Battery is a combined detector, safeguarding you from two risks in one unit.
You can easily install it in most locations around your home, mounting it to either a wall or ceiling.
This product features a voice alarm to inform you if smoke or carbon monoxide has been detected. It also has a hush control feature to silence nuisance alarms temporarily and a simple test/reset button for you to test the alarm function regularly.
The unit comes complete with a 9V alkaline battery that you can easily change through the front-loading battery compartment.
Replacement 3.7V battery for the Sargent AS350 Alarm system. This is a 10A Lithium Ion rechargeable battery.
Sargent stinger 310 battery replacement.
Sargent Recommend the replacement of this battery every 3 years.
Always check the condition of your Sargent battery especially those caravans and motorhomes which are in storage through the winter months.
FireAngel Toast Proof Smoke Detector
1 Year Replaceable Battery.
The FireAngel SB1-R Smoke Alarm has been designed to make protecting your caravan & Motorhome simple, with easy install and testing and rigorous testing by independent parties, such as BSI Kitemark, to ensure quality and longevity.
3 Year Warranty. The optical smoke sensing chamber works by ‘seeing’ smoke as it enters the alarm – making it perfect for slow burning fires where there is thick white smoke. For the fastest response to all fire types search for FireAngel Thermoptek Alarms.
To sum it all up, preparing for the holiday season involves more than just packing your bags and hitting the road. It's essential to ensure that your caravan is in top condition and equipped with the necessary parts and accessories for a safe and enjoyable trip. At RAE Caravan Parts, we provide a wide range of caravan parts and accessories to ensure that your caravan is always in top condition. Don't hesitate to contact us today for more information on our products and services. Happy Holidays!
This Item is for Click & Collect Only
Ideal for Leisure use and very common in Caravans and Motorhomes.
If your battery is located in a floor box or under a front seat, you may need this low height version
Suitable for motormover use
EFBLB6110L – 100ah
Voltage: 12v
Life cycles: 200
L353 x W175 x H190mm
Sealed – Low box
NCC Class – C
Weight: 23.1Kg
